4 pan/3m 3 pan/3m Broiler Pan Feeding System 1 Year Warranty

Large Image : 4 pan/3m 3 pan/3m Broiler Pan Feeding System 1 Year Warranty

Product Details:

Place of Origin:	china
Brand Name:	HX

Payment & Shipping Terms:

Minimum Order Quantity:	1 house
Price:	USD 10-20
Payment Terms:	L/C, T/T
Supply Ability:	10 houses per month

Contact Now

4 pan/3m 3 pan/3m Broiler Pan Feeding System 1 Year Warranty

Description

Name:	Poultry Farm Equipment , Poultry Feeder Drinker	APPLICATION:	Poultry
Features:	Longer Service Life ,Increase Survival Rate	Sections:	16 Partitions,14 Partitions
Material:	Plastic	Brand:	HX
High Light:	3 Pan/3m Broiler Pan Feeding System , Broiler Pan Feeding System 1 Year Warranty , 4 Pan/3m pan feeding system for broiler

Broiler Farm Automatic Feeding System Line For Chicken Farming

Overview

Quick Details

Condition:: New

Warranty:: 1 Year

Showroom Location:: None

Place of Origin:: hebei, China

Brand Name:: Everon

Model Number:: EO-Feeding System

Applicable Industries:: Farms

Marketing Type:: Ordinary Product

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Warranty of core components:: 1 Year

Core Components:: Motor

Key Selling Points:: Long Service Life

Weight:: 30 KG

Material:: plastic and galvanized steel

number of grid:: 14 or 16

Feeding line specification:: 4 pan/3m, 3 pan/3m

auger:: imported from South africa

sensor:: imported from Germany

gear motor:: Taiwan brand

gear motor power:: 380v,0.75kw

deliver pipe:: 45mm diameter, 275g/sq.m zinc coating

Feed pan capability:: 45-60 Chicken

Supply Ability

Supply Ability: 1000 Meter/Meters per Week

Packaging & Delivery

Packaging Details: Standard export package

Port: Qingdao/Tianjin/Ningbo/Shanghai

Products Description

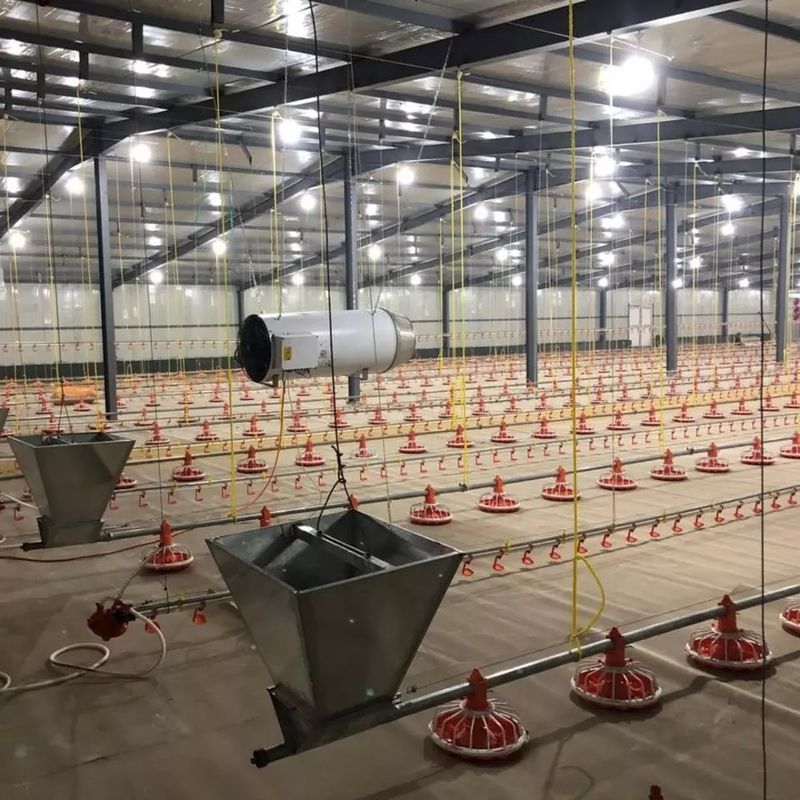

Automatic pan feeding system including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to tansport the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor's direction which give the oder to motor to make it working or stop.

Product Details

Number of grilles per pan	14	16
Number of birds per pan can feed	40-45	45-50
Distance per grill	70mm	70mm
Density of bird	10-12birds/m2	10-12birds/m2
Max feed per pan for one bird per day	180g/bird	180g/bird
Dimension	330x330mm	360x360mm
