14/16 partitions Poultry Farm Equipment Plastic Chicken Feeders And Drinkers

Large Image : 14/16 partitions Poultry Farm Equipment Plastic Chicken Feeders And Drinkers

Product Details:

Place of Origin:	china
Brand Name:	HX

Payment & Shipping Terms:

Minimum Order Quantity:	1 house
Payment Terms:	L/C, T/T
Supply Ability:	10 houses per month

Contact Now

14/16 partitions Poultry Farm Equipment Plastic Chicken Feeders And Drinkers

Description

Name:	Poultry Farm Equipment , Poultry Feeder Drinker	APPLICATION:	Poultry
Features:	Longer Service Life ,Increase Survival Rate	Sections:	16 Partitions,14 Partitions
Material:	Plastic	Brand:	HX
High Light:	16 Partitions Poultry Farm Equipment , 14 Partitions Poultry Farm Equipment , Plastic Chicken Feeders And Drinkers

High Quality Plastic Poultry Feeder Pan Bucket Water Drinker Farm Equipment Auto Chicken Feeder

Product Description

Poultry shed chicken farm building house for 10000 chickens,Feeding and nipple drinking line system for Broilers

*Save time and labor, one shed just need one person.

*Increase survival rate.

*Easier to operate.

*Easier to install and clean.

*Longer service life.

*Competitive price.

*Complete controlled poultry equipment.

Specification

Automatic Pan Feeding System

Packed Tower

Tower silo wall:it is made of steel with tension up to 55000,With electroplating coating treatment,275g Zinc coating.2.Movable top cover:Can be 180° opening,and you can control it on the ground.
Bin top Edge:Different design based on different actual situation,The edge at the bottom of the material tower formed by curling edge can keep the rainwater away
40° tower top: 40° tower top provides greater strength and capacity.
Hopper: there are three kinds of funnel at the bottom, 45° for dry feed conveying; 60° for smooth flowing grain conveying;


Main Feeding line

Main Feeding Line with motor spiral conveyor and hopper
Parameters:
1.Tube diameters:75mm×3.6mm
2.Material:PVC
3.Capacity of Conveying food:1400kg/hr
4.Bent tube diameter: R1500

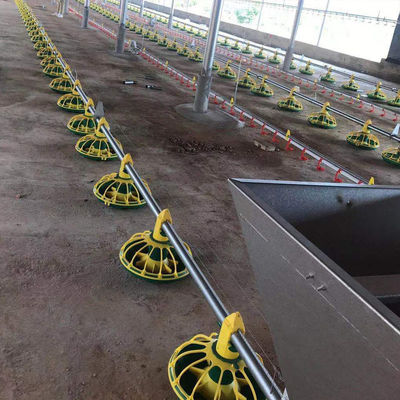

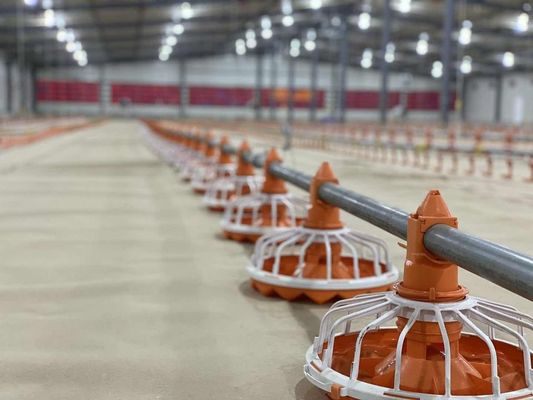

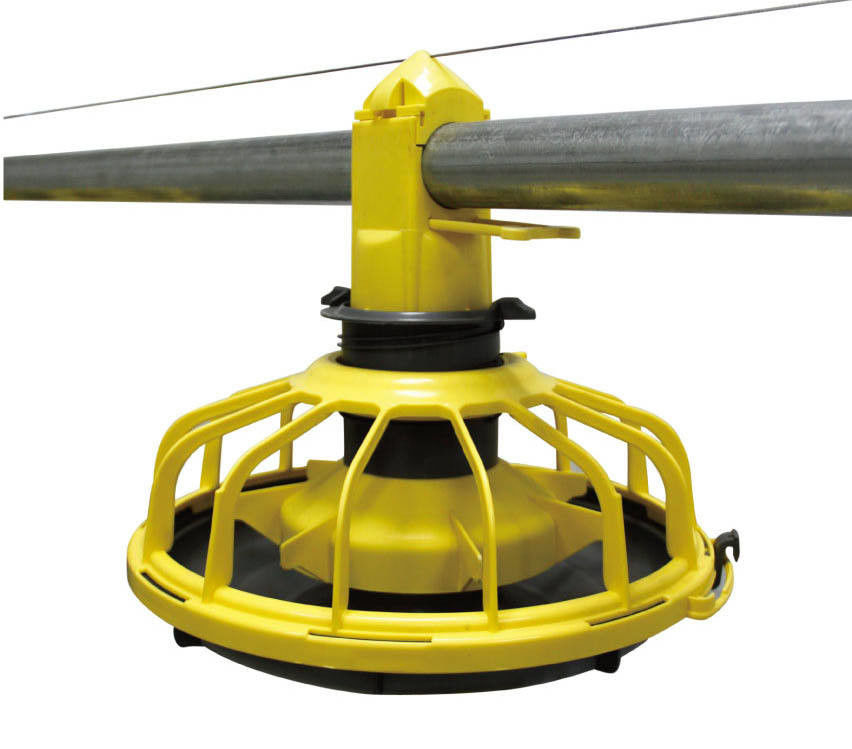

Feeding Pan

Feeding pans with V-shaped can decrease the surplus of chick food,Fresh food supply for chicks.
Parameters:1.Diameter:330mm
2.Material:PP
3.Sections:14/16 partitions
4.Feeding Quantity:40-50 chicks per pan

Spiral Conveyer
Spiral conveyer is made of imported high-carbon manganese steel from South Africa as raw material,quality is reliable
Parameters:
Models:36#,45#,63#,75#,90#. if special model needed, we can customize based on request.

Lifting Device

Lifting Device,which mainly include winch,pulley wheels,fixing material and steel rope
Features:The Height of feeding pans is very important to the broilers,This lifting device can help you to adjust the height in order to give proper feeding condition to broilers according to their growing levels.It also saves your time when you do the clean-up or transporting of broilers.

Automatic Nipple Drinking System

Filter System

1.Φ25 pipe ,filter ,water-flowmeter, pressure tank,valve,pump,plastic bucket.etc2.With back-flushing system and double filtration.Filter fineness is less than 5 micron. 3.Spare filter element is provided.
4.Filter element can be cleaned without being dismantled by using backwash device.

Medical System

Dosatron imported from France.Working pressure: 0.3bar-6bar.

Highest working temperature: 40℃

Dilution percentage: 0.2%-2%Public Doser
Add ratio 0.2%-2%
Gaskets 3*10mm,
Regulator valve:brass made
ø6 Groove gasket :4*12mm

Water Pipe

25mm*2mm PVC square pipe,resistance 90° bending with seven times.

Nipple Drinker

360 degree make sure large waterflow.

Water flow:80-90ml/min

Broiler:8-12 birds/nipple4m/set
4 nipple/m
Can customize based on customer request
