Fully Automatic Chicken Feeding Line 14/16 Partitions 450kg/H

Large Image : Fully Automatic Chicken Feeding Line 14/16 Partitions 450kg/H

Product Details:

Place of Origin:	china
Brand Name:	HX

Payment & Shipping Terms:

Minimum Order Quantity:	1 house
Payment Terms:	L/C, T/T
Supply Ability:	10 houses per month

Contact Now

Fully Automatic Chicken Feeding Line 14/16 Partitions 450kg/H

Description

Name:	Poultry Farm Equipment , Poultry Feeder Drinker	APPLICATION:	Poultry
Features:	Longer Service Life ,Increase Survival Rate	Sections:	16 Partitions,14 Partitions
Material:	Plastic	Brand:	HX
High Light:	Fully Automatic Chicken Feeding Line , Chicken Feeding Line 16 Partitions , Chicken Feeding Line 450kg/H

Modern poultry farm automatic feeding line fully automatic chicken feeding

Products Description

FB Series Feeders Broiler automatic Chicken Auger Feed System For Poultry Farm/Chicken house

⦿Save time and labor, one shed just need one person.
⦿Increase survival rate. ⦿Easier to operate. ⦿Easier to install and clean. ⦿Longer service life. ⦿Competitive price. ⦿Complete controlled poultry equipment.


Product Paramenters

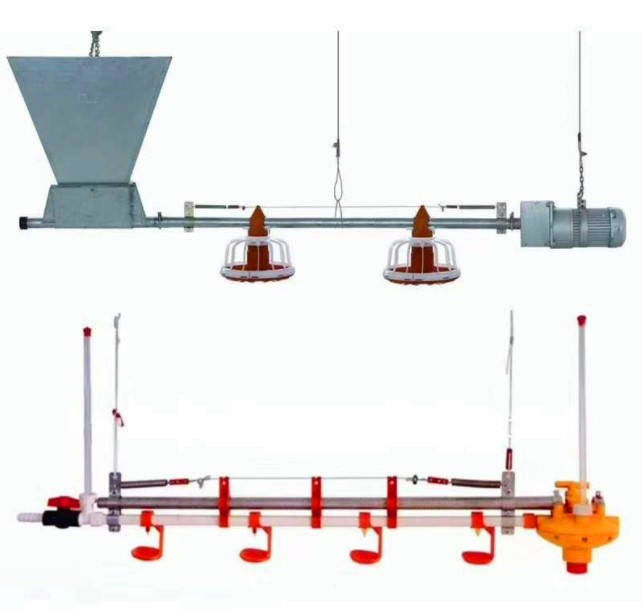

1. Automatic Pan Feeding System

Packed Tower

1.Tower silo wall: it is made of steel with tension up to 55000,With electroplating coating treatment, 275g Zinc coating.
2.Movable top cover:Can be 180° opening,and you can control it on the ground. 3.Bin top Edge:Different design based on different actual situation,The edge at the bottom of the material tower formed by curling edge can keep the rainwater away 4.40° tower top: 40° tower top provides greater strength and capacity. 5.Hopper: there are three kinds of funnel at the bottom, 45° for dry feed conveying; 60° for smooth flowing grain conveying

Main Feeding line

Main Feeding Line with motor spiral conveyor and hopper Parameters: 1.Tube diameters:75mm×3.6mm 2.Material:PVC 3.Capacity of Conveying food:1400kg/hr 4.Bent tube diameter:R1500

Vice hopper feeding line system

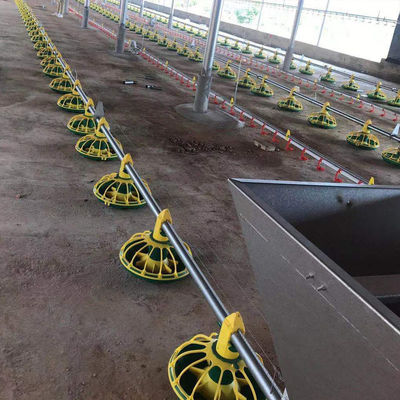

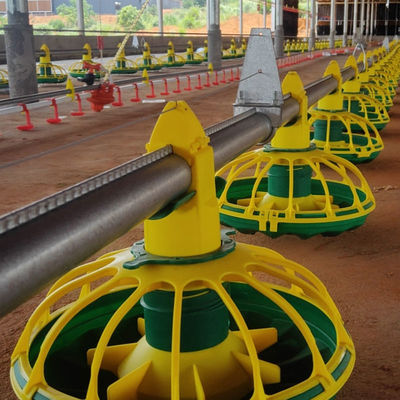

Feeding Pan Feeding pans with V-shaped can decrease the surplus of chick food,Fresh food supply for chicks. Parameters: 1.Diameter:330mm 2.Material:PP 3.Sections:14/16 partitions 4.Feeding Quantity:40-50 chicks per pan

Hopper	Vice hopper volum	115 L /200L
Hopper	material	hot-dip galvanized sheet
Hopper	material thickness	1mm
Conveying pipe & Auger	Feeding pipe material	hot dip galvanize steel (275g zinc coating)
Conveying pipe & Auger	Conveying pipe	3m with 3 pans or 4 pans
Conveying pipe & Auger	Diameter	45mm, 1.2mm thickness
Conveying pipe & Auger	Auger	imported from South Africa
Conveying pipe & Auger	Feeding ability	450kg/h

Spiral Conveyer

Spiral conveyer is made of imported high-carbon manganese steel from South Africa as raw material,quality is reliable Parameters: Models:36#,45#,63#,75#,90#. if special model needed, we can customize based on request.

Lifting Device

Lifting Device,which mainly include winch,pulley wheels,fixing material and steel rope Features:The Height of feeding pans is very important to the broilers,This lifting device can help you to adjust the height in order to give proper feeding condition to broilers according to their growing levels.It also saves your time when you do the clean-up or transporting of broilers.

Tag:

Plastic Poultry Farm Equipment,

Poultry Farm Equipment HX,

Automatic Poultry Feeder 60 Chicken
