Product Details:
|
| High Light: | 3000LBS Manual Hand Winch,Drinking Line Manual Hand Winch,3000LBS Hand Winch Manual |
||
|---|---|---|---|

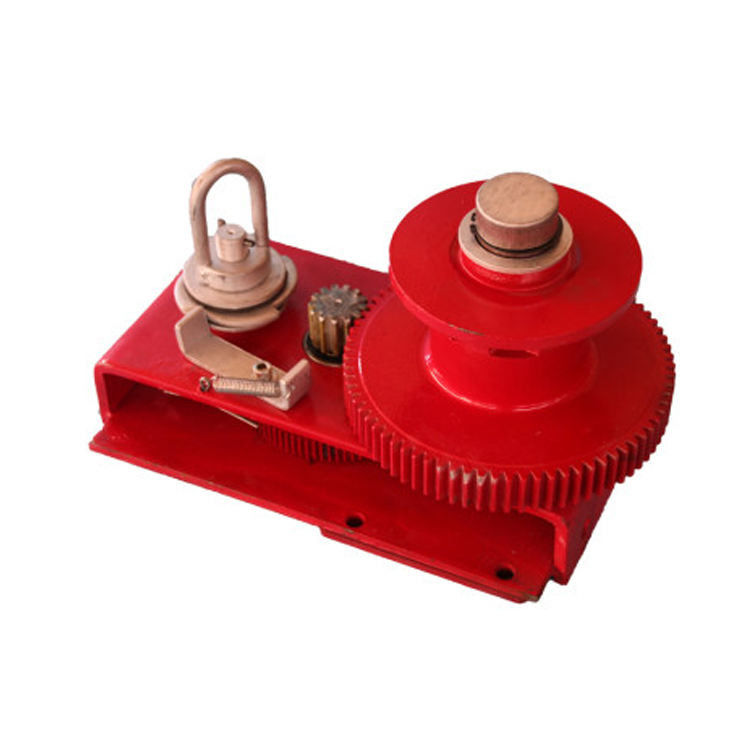

3000LBS Double Speed Manual Hand Poultry Winch With Brake Without Webbing & Cable
| model | Rated working load | reduction ratio | diameter of cylinder |
Roller rope capacity (rope diameter mm X length m) |
Overall dimensions of the machine (L X W X H mm) | Handle Length (mm) | Weight (Kg) | ||
| H-1500(hand) | 680 KGS. | 41:1 | 47 | 6.35mm | 4.76mm | 3.18mm | 170X165X210 | 1500 | 4.7 KG. |
| 5m | 9m | 18m | |||||||
| H-1500B | 680 KGS. | 41:1 | 47 | 6.35mm | 4.76mm | 3.18mm | 170X165X210 | 220 | 4.7 KG. |
| 5m | 9m | 18m | |||||||
| H-3000 | 1370 KGS. | 45:1 | 88 | 6.35mm | 4.76mm | 3.17mm | 326X200X214 | 1500 | 17.3 KG. |
| 14m | 28m | 63m | |||||||
| H-3500 | 1600 KGS. | 55:1 | 92 | 9.53mm | 7.94mm | 6.35mm | 340X210X220 | 1500 | 17.8 KG. |
| 8m | 9m | 15m | |||||||
Our Manual Hand Poultry Winch mainly used for chicken feeding and drinking system ,horizontal towing.
Which suits especially for poultry farm ,towing of yacht and boat; Also can be widely applied on industrial and agricultural application. We offer cable wire, strap and only winch version and more than 50 types; Work load:range from 500lbs(250kg) to 3500lbs(1500kg).
1.Adjustment of Height of Feeding Line to prevent feedstuff waste;
2.Save Manpower;
3.Easy to assemble and disassemble this product;
4.Anti-rust; Anti-wearing; Easy to Clean;
5.Durable, User Friendly and Easy maintenance.
 |
 |
 |
| 1500 winch | 1500 winch handle | 3500 winch |
 |
 |
 |
| 3-1/2 pulley | 3-1/2 nylon pulley | corner |
